ACOPOWER Panel Installation for 50W~100W solar panel

General provision


a.  Installation should only be performed by qualified personnel. Each module is supplied with connectors used for system electrical connections. For the convenience of installation, ACOPOWER can provide customized cables as client required. Installers should assume all risks of injury that might occur during installation.

b. Inappropriate transport and installation may break the module and void the warranty.

Ready to work

To set up the mounting bracket of solar panel depends on its size. The bracket fixting hole must be on the basis of the pitch of hole of the solar panel module. The installation tools include: appropriate fasteners (Rails Clamp Hardware  screws, nuts ) and the other installation tools.

Installation Photovoltaic Module

Grounding installation:

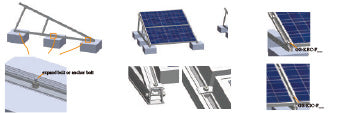

a. a. Pole Mount  Single Arm Pole-Wall Mounting Brackets  installstion adopted. 4 angles (30 ° 35 ° 40 ° 45 °) can be adjusted according to the position of the hole.


b. For simple installation, please use facile fixative bracket to set up. It is easy to adjust the angle. This installation can be set up on the floor or the wall.


c. For rooftop installation, please choose“Solar Panel Mounting Z Bracket ”to Install on the roof and RV, Boats and other systems


Solar panel connection

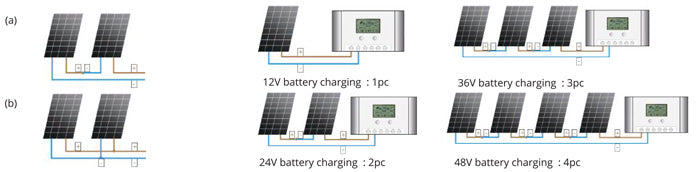

The length of the cable that connected with the solar panel junction box is 1M (39.37 INCH) ,which should be noted the polarity of the output. The standard wiring polarity is "face terminal box: left" - "right" + ", also the polarity can be viewed on the wiring.After installation of each solar panel, series and parallel connection must be set up based on design requirements of voltage and current. Series connection is "-" and "+", "-" and "+" operator ,increased the charging voltage, FIG:(a). Parallel connection is "-" and "-" connected, "+" and "+" increased the charging current, FIG:(b). To use a different connection, solar panel can charge battery for 12V, 24V 36V 48V through the solar charge controller.


The installation angle can be adjustable according to different geographical location, mostly associated with latitude.  ACOPOWER Team has solar design experts can provide professional and free design!
