User Manual of HY-3x30W18V2

Product Introduction



Introduction

With a lightweight and suitcase design, this portable solar panel features a 3x30W max power, totally max 720wh each day, or max 60AH each day for 12V battery

Features
  • Max 90 watts solar panel
  • Portable
  • Charge 12V solar generator by MC4 adapter- battery with inverter, power bank/station with built-in charge controller. ACOPOWER solar generator 400Wh recommended
  • Can be used on its own or as part of a larger solar system
  • Extendable with MC4 Connectors

User’s guide

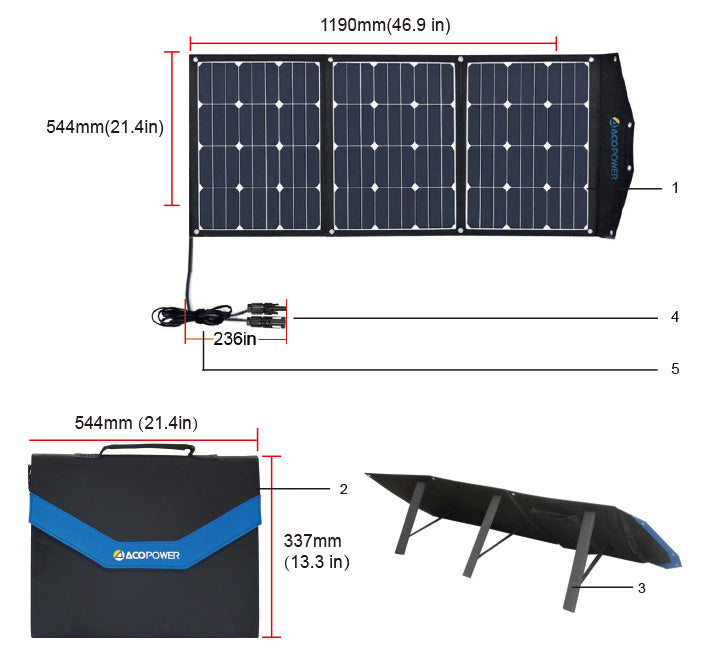

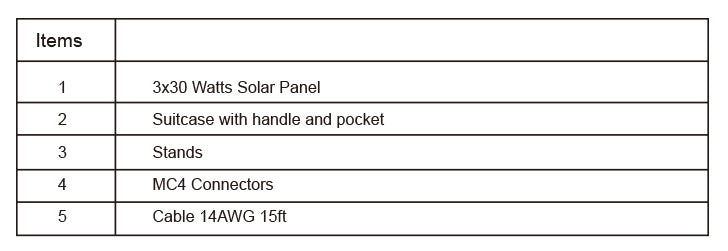

After receiving the solar panel, please check if all accessories are included in the package and prepare to test it:

  1. Locate a sunlit area clear from hanging branches or obstacles.

  2. Unfold the solar panels and face the front towards the sun.

Tip: To obtain the maximum output power of solar modules, it is recommended to adjust the solar modules based on solar trajectory.

How to test the solar panel

Method 1: use a multi-meter


Set your multi-meter to measure DC voltage and put the red probe on the red MC4 cable and the

black probe on the black MC4 cable (this is the solar panel’s direct output), make sure the connections are secure. the open-circuit voltage should be displayed on your multi-meter and it should be ~~~~around 17.6V-23V.

If you’re not getting something within that range or close to those numbers, you should check and

make sure the solar panel is in direct sunlight and that the connections between the MC4 cables

and the multi-meter is secure.

Method 2: use your solar generator


To test if the solar panel is working with a solar generator with a built-in charge controller, connect the MC4 adapters that came with your solar generator and plug it in to the MC4 cables of the solar panel directly (Bypassing the charge controller). Turn your solar generator on and it should start charging from the solar panel.

Charge Your 12V Battery:

1. Prepare your charge controller 10A or larger one is recommended.

2. Use MC4 Cable connect to charge controller


Be a part of bigger solar system:

Use Y connector for parallel solar system (Keep the same voltage and the circuit has larger current) Please search ACOPOWER Y MC4 Connectors for the product


To charge a 24V battery, connect two 90W portable solar panel in series by connecting one of the positive MC4 Connector to another solar panel’s negative MC4 Connector and left the other two MC4 connectors open.

What are you going to use it for

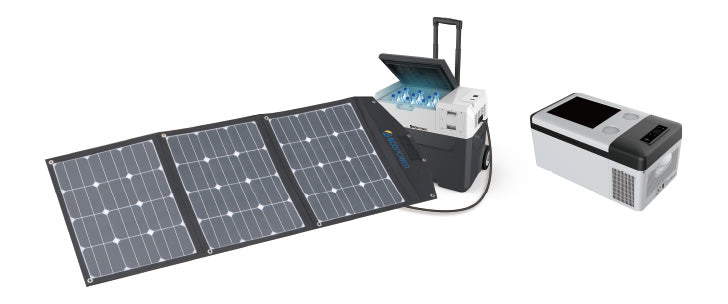

1. Charge solar generators

1.1. Charge 12V Solar Generator with built-in Charge Controller


Step 1: understand your solar generator and prepare the MC4 adapter for your solar generator


Step 2: Disconnect MC4 Connectors and let it to be a solar panel with MC4 connectors

Step 3: Use your MC4 Adapter to charge your solar generator

2. Charge solar freezer

1.1. Charge 12V solar freezer with built-in Charge Controller


Step 1: understand your solar freezer and prepare the MC4 adapter for your solar freezer


Step 2: Disconnect MC4 Connectors and let it to be a solar panel with MC4 connectors

Step 3: Use your MC4 Adapter to charge your solar freezer

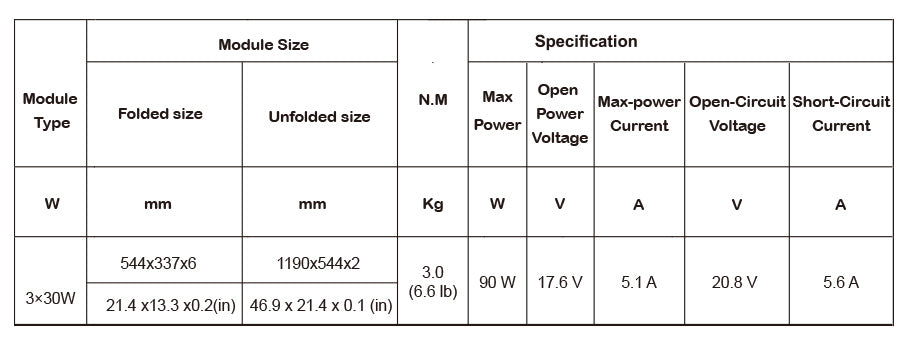

Specifications
